FSDC Pallet Inverter
Description
The FS DC Inverter is a 180° load inverter with double clamps. This is a very good all-round inverter, especially useful when loads range widely in height, and can be useful in many situations.
The FS DC is usually loaded by pallet truck via a ramp and therefore the customer does not have to dedicate a forklift truck and driver in the operation.
Push button controls are fitted as standard but full automation is an option if required.
The FS DC inverter is very ruggedly built and has an extremely resilient finish of a double coat of special zinc primer and a hard epoxy topcoat.
The unit can work with loads between 600mm and 2mtr with a weight capacity of 2000kgs.
Specifications
| FSDC SPECIFICATIONS | ||||
|---|---|---|---|---|
| Australiable jaw opening | maximum 2.00m | |||
| minimum 0.64m ramp loaded tables | ||||
| or | 0.74m floor flush tables | |||
|
|
||||
| Increased jaw opening models also available | ||||
|
|
||||
| Load tables | 1.30m x 1.30m ramp loaded tables | |||
| 1.40m x 1.30m floor flush tables | ||||
|
|
||||
| Normally supplied with 1.20m long loading ramp | ||||
|
|
||||
| Loading capacity 2000 kgs. | ||||
|
|
||||
| Power supply 3ph / 400v/ 20 amp | ||||
| Motor size 4kW | ||||
|
|
||||
| Weight 2255 kgs | ||||
| Weight of guards 175 kgs | ||||
|
|
||||
| Controls: Extended individual push button controls with semi or fully auto- sequenced systems available as an option. | ||||
|
|
||||

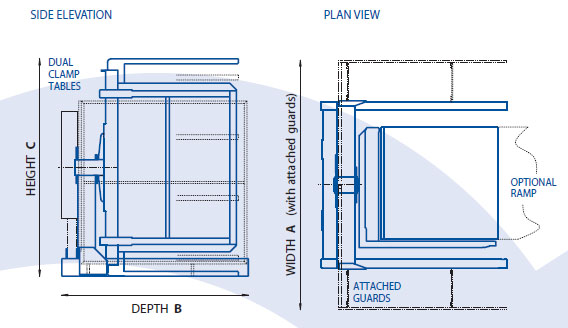

| Operating space: 2.80m wide x 2.30m deep x 2.48m high inc. attached guards | ||||
|
|
||||
| Depth increases to 3.31m when fitted with floor-fixed guards and multi photo-beams. | ||||
|
|
||||
| Standard shipping dimensions: 2.80m wide x 2.30m deep x 2.20m high with guards fitted. | ||||
