FS Pallet Inverter

Availability: Normally From Stock

Description

The Premier FS Inverter is a free-standing unit which is perfect for many applications and load types e.g. boxes, bags, cans etc and can handle a wide range of sizes and weights. One of the main uses of the FS Inverter is to transfer goods from/to wood and plastic pallets for hygiene reasons and also to get damaged goods from the bottom of the stack. The inverter is loaded by forklift truck, has one moving table and is stocked in 3 standard sizes. However it can be built to suit specific needs. Options include steel bodywork or a zinc rust protective spray.



    WHY USE A FREE STANDING PALLET INVERTER:
      FS Inverter is a Free Standing pallet inverter.
      The FS requires a 3 phase power supply.
      Perfect for warehousing needs where hygienic pallet changes are required.
      Ideally suited for switching pallets prior to distribution.

See our video below

Specifications

FS SPECIFICATIONS
Model: FS1600 FS1900 FS2200
JAW OPENING 1.60m MAX; .92m MIN 1.90m MAX; 1.06m MIN 2.20m MAX; 1.13m MIN
STD LOAD TABLES 1.37m x 1.22m 1.37m x 1.22m 1.37m x 1.22m
LOADING CAPACITY 2000 kgs 2000 kgs 2000 kgs
POWER SUPPLY 3ph/400V/15A 3ph/400V/15A 3ph/400V/20A
MOTOR SIZE 2.2kw 3kw 4kw
WEIGHT 1700 kgs 1850 kgs 2000 kgs
WEIGHT OF GUARDS 175 kgs 175 kgs 175 kgs

Smaller or larger models can be custom-built
Controls All models fitted with dual hydraulic lever controls as standard. Extended individual push button controls or computerized auto-sequenced systems available as option.

OPERATING SPACE 2.80m WIDE X 2.80m WIDE X 3.31m WIDE X
INCL. ATTACHED 2.10m DEEP X 2.10m DEEP X 2.10m DEEP X
GUARDS 2.56m HIGH 2.73m HIGH 3.61m HIGH

Depth increases to 3.30m on all machines when fitted with floor fixed guards and multi photo-beams.

STANDARD SHIPPING 2.80m WIDE X 2.80m WIDE X 3.31m WIDE X
DIMENSIONS WITH 2.10m DEEP X 2.10m DEEP X 2.10m DEEP X
GUARDS FITTED 2.20m HIGH 2.30m HIGH 2.40m HIGH

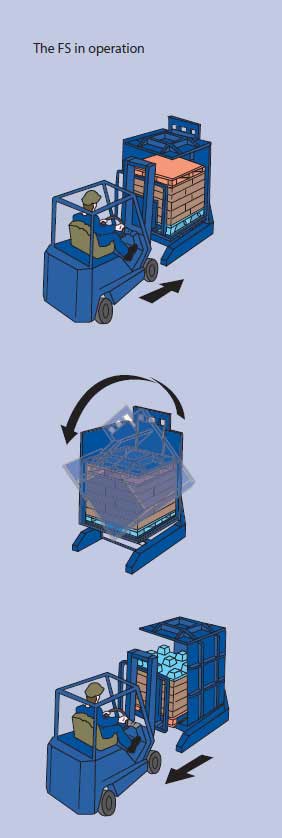

FS Dimensions Images of machine
